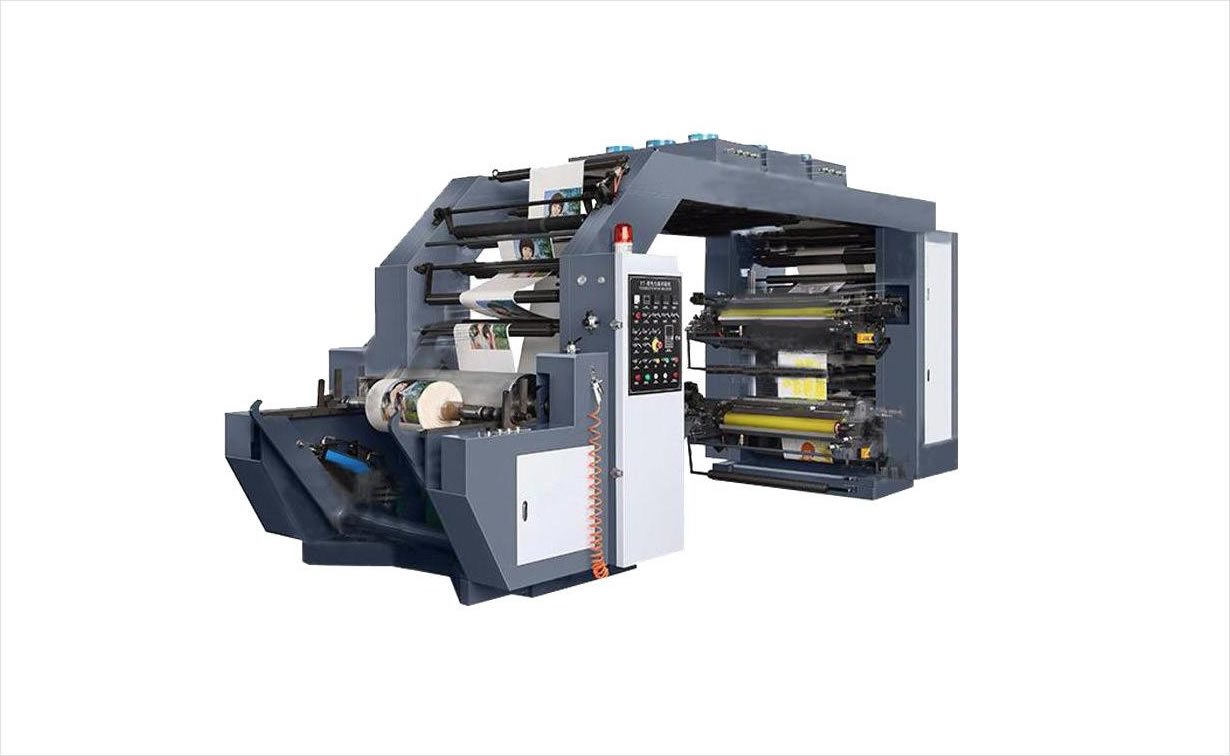

OJ multi-color high speed flexo printing machine
Applications:
This flexo printing machine is suitable for printing various of roll to roll materials, like regular paper, kraft paper, thermal paper, film(BOPP,OPP,CPP,PET,PE), non woven cloths, woven bags, self-adhesive labels, paper cups, etc.
Features of machine:
1. Low speed and full load startup; stable running by tension control when increasing and decreasing speed, noise is decreased
2. High dots presentation rate under high speed; clear and vivid stratification of screen printing; strong stereo effect and accurate registering
3. Aluminum roller adopts the Japan semi-sealing small bearing; flinty oxidation, static and dynamic balancing treatments are conducted; low resistance and small flop.
4. The special made modulus angular gears adopted printing size and full printing specifications (5mm is spec)
5. With the air exhaust, blowing and heating settings; the heating system adopts the central thermostatic control system and group management, also with the cold air forming devices
6. Printing rolls should keep moving while machine halted
7. Material holder use air shaft
8. Auto tension control
9. Unwind with auto edge position correction system (EPC)
10. Reversible printing can be used to print logos on both sides of roll material
Technical Specifications:
Printing Width
600mm
800mm
1000mm
1200mm
1600mm
Printing Length
1000mm
1000mm
1000mm
1000mm
1000mm
Printing Colors
2,4,6,8,10
2,4,6,8,10
2,4,6,8,10
2,4,6,8,10
2,4,6,8,10
Printing Plate Lifting System
Hydraulic press control
Hydraulic press control
Hydraulic press control
Hydraulic press control
Hydraulic press control
Max. Mechanical Speed
90m/min
90m/min
90m/min
90m/min
90m/min
Max. Printing Speed
80m/min
80m/min
80m/min
80m/min
80m/min
Anilox Cylinder
Ceramic
Ceramic
Ceramic
Ceramic
Ceramic
Register Precision
±0.2mm
±0.2mm
±0.2mm
±0.2mm
±0.2mm
Master Motor
3.0kw
3.0kw
3.5kw
3.5kw
5.5kw
Electrical Heater Power
10kw
12kw
14kw
16kw
30kw
Blower Power
1.5kw*2
1.5kw*2
1.5kw*2
1.5kw*2
1.5kw*2
Ink Motor
370w
370w
370w
370w
370w
Total Power
20kw
22kw
26kw
28kw
42kw
