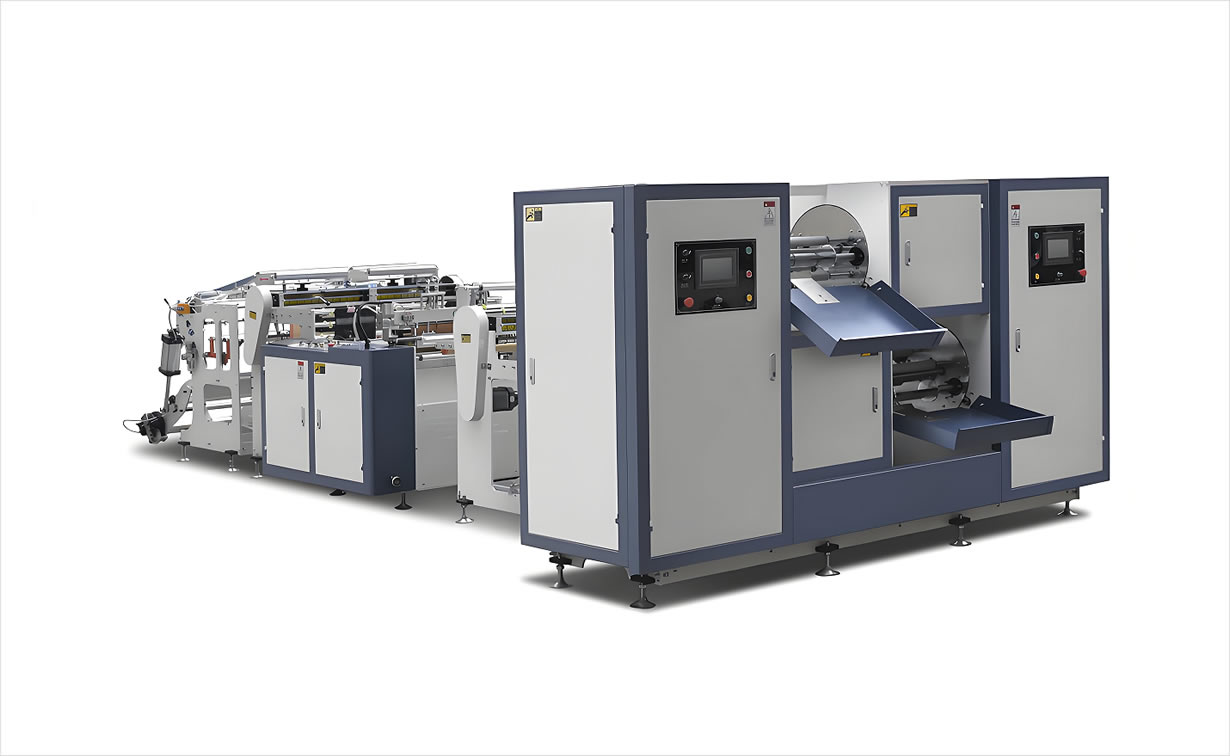

OJ-500 * 2 fully automatic dual channel continuous roll coreless flat mouth supermarket bag making machine

DATA:2025/11/22 Publisher: Oujie Machinery




Performance and features
1Computer automatic control, automatic counting and adjustable counting alarm, high efficiency, saving manpower and time

2.From film roll to finished bag, it is fully automated and completed in one go;

3.Domestic servo motor with fixed length, photoelectric tracking, accurate and stable, feeding adopts photoelectric control;

4.Adopting a hot cutting device and an intelligent temperature control system to ensure a firm and smooth sealing of the bag opening,
5.The host adopts a frequency converter to control speed regulation
6.Material feeding is controlled by a frequency converter.

Main technical parameters

  Machine model
  OJ-500x2
  Mmachine speed
  50-280pcs/min
  Bag length
  400-1000mm
  Bag-making width
  200-400mm
  Bag thickness
  0.006-0.025mm
  Sealing method
  Non core flat mouth supermarket bag
  Temperature control range
  4 Zone
  Heating total power
  8kw
  Total power
  20kw
  Machine weight 2300kg
  Machine dimensions
  6500x2250x2000mm(L*W*H)
