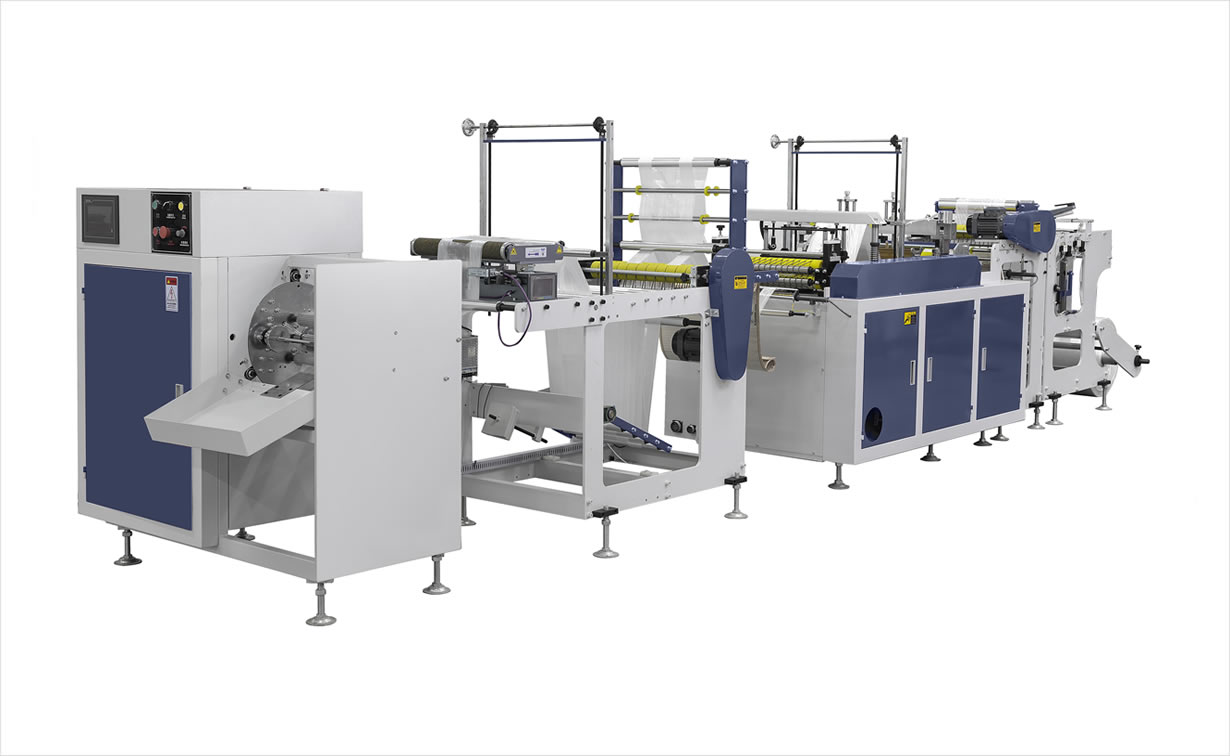

OJLA-500 fully automatic coreless supermarket continuous roll bag making machine

DATA:2025/11/22 Publisher: Oujie Machinery



Performance and features
1.Computer automatic control, automatic counting and adjustable counting alarm, high efficiency, saving manpower and time

2.From film roll to finished bag, it is fully automated and completed in one go;

3.Domestic servo motor with fixed length, photoelectric tracking, accurate and stable, feeding adopts photoelectric control;

4.Adopting a hot cutting device and an intelligent temperature control system to ensure a firm and smooth sealing of the bag opening,
5.The host adopts a frequency converter to control speed regulation
6.Material feeding is controlled by a frequency converter.

Main technical parameters:

  Machine model
  OJLA-500
  Machine speed
  60-200pcs/min
  Maximum linear velocity
  100m/min
  Bag length
  100-1200mm
  Bag-making width
  80-300mm
  Bag thickness
  0.005-0015mm
  Sealing method
  vest garbage bag
  Temperature control range
  3 Zone
  Heating total power
  5kw
  Total power
  19.5kw
  Machine weight   1400kg
  Machine dimensions
  6200x1200x1800mm(L*W*H)
