Descriptions:

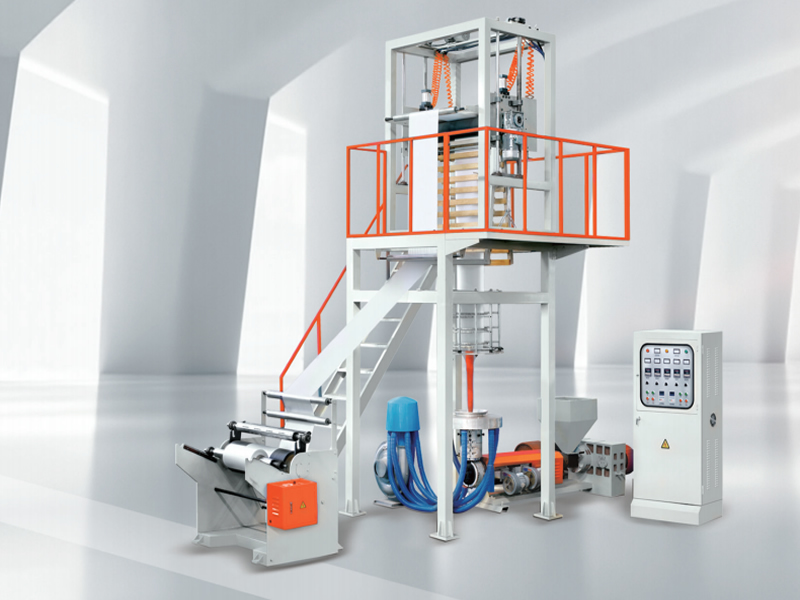

This plastic film blowing machine is used to produce tube film rolls from material like low-density polyethylene(LDPE), high-density polyethylene(HDPE) and linear low-density polyethylene(LLDPE), its final products are widely used in food department stores, household, chemical, textile, shopping bags and industrial packaging.

Customers could choose different sizes of screw according to their needs, in order to blow films in different width and thickness. Meanwhile, this machine is able to produce biodegradable material after internal components optimization like screws, die heads, air rings, etc.

Optional parts:

1>Auto loader

2>Corona treater

3>Rotary Die head

4>Double winder

5>Hydraulic easy filter changer

6>Single auto winder

Specifications:

Model	OJ 50-700	OJ 55-900	OJ 60-1100	OJ 65-1300
	LDPE/HDPE/LLDPE
Screw Diameter	50mm	55mm	60mm	65mm
Screw Ratio	30:1	30:1	30:1	30:1
Film width	100-600mm	200-800mm	300-1000mm	400-1200mm
Productivity	35kg/h	50kg/h	65kg/h	80kg/h
Thickness of film	0.008-0.08mm	0.008-0.08mm	0.01-0.1mm	0.01-0.12mm
Screw material	SACM-645/38 CRMOALA
Barrel material	SACM-645/38 CRMOALA
Power of Main motor	11kw	15kw	18.5kw	22kw
Total power of machine	22kw	30kw	38kw	50kw
Dimension after installation	4500*2100*3800mm	4800*2500*4200mm	5200*2800*4800mm	5800*3200*5200mm
Weight of machine	2000kgs	2300kgs	2800kgs	3000kgs
Voltage of machine	380V,50Hz,3-ph

Applications:
