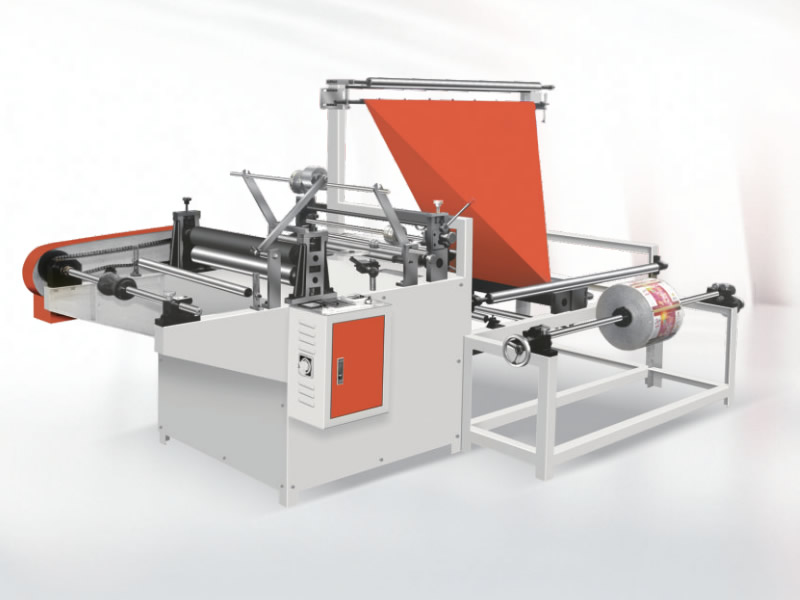

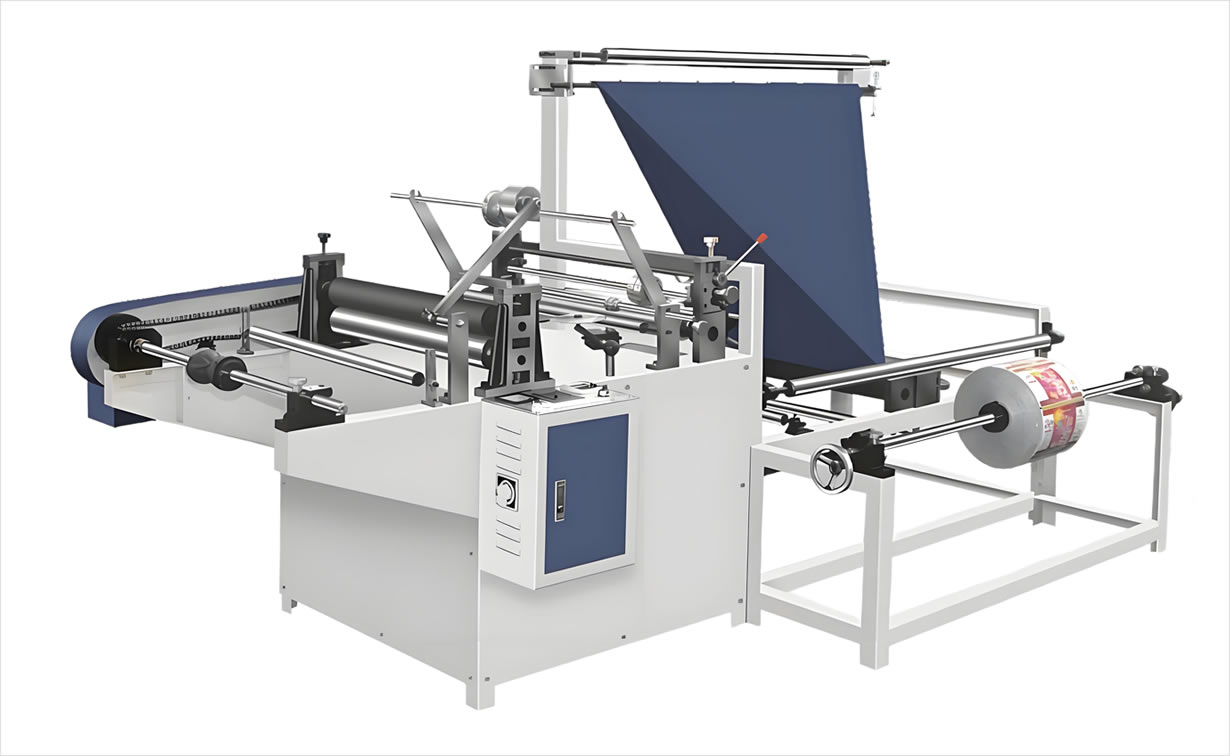

OJ-ZR Series Folding Winder

DATA：2022/1/7 Publisher: Oujie Machinery

Performance and features：
This machine is a component of the hot cutting unit; Suitable for folding BOPP sheet materials, it has functions such as automatic double-sided tape application, pearl film application, rolling tooth longitudinal sealing (used in conjunction with an ultrasonic generator), and barrel material breaking (with an additional breaking mechanism).

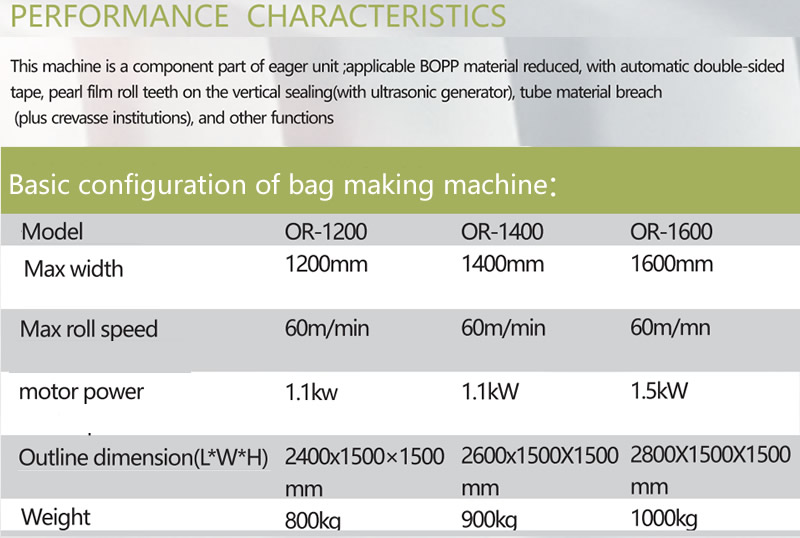

Main technical parameters:

Model
 OR-1200
 OR-1400
 OR-1600
Maximum substrate width
 1200mm
 1400mm
 1600mm
Maximum winding speed
 60m/min
 60m/min
 60m/min
Total power
 1.1 kw
 1.1 kw
 1.5 kw
Overall dimensions(L*W*H)
 2400x1500x1500mm
 2600x1500x1500mm
 2800x1500x1500mm
Machine weight
 800kg
 900kg
 1000kg
