Description:

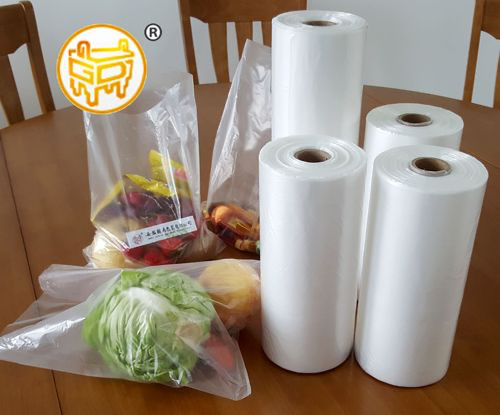

This machine is used to produce various of bottom sealing on roll bags for food packing in supermarkets, including plastic flat bag or t-shirt bag, plastic gusseted bags or non gusseted bag, plastic printed or white bags, with core bags or without core bags.

Specifications:

Model	OJA 500	OJA 600	OJA 800
Width of bag making	100-400mm	100-500mm	200-700mm
Length of bag making	200-600mm	200-700mm	300-800mm
speed of bag making	40-120bags/min*2	40-120bags/min*2	40-110bags/min*2
Thickness of bag making	HDPE:0.007-0.025mm, LDPE:0.015-0.05mm

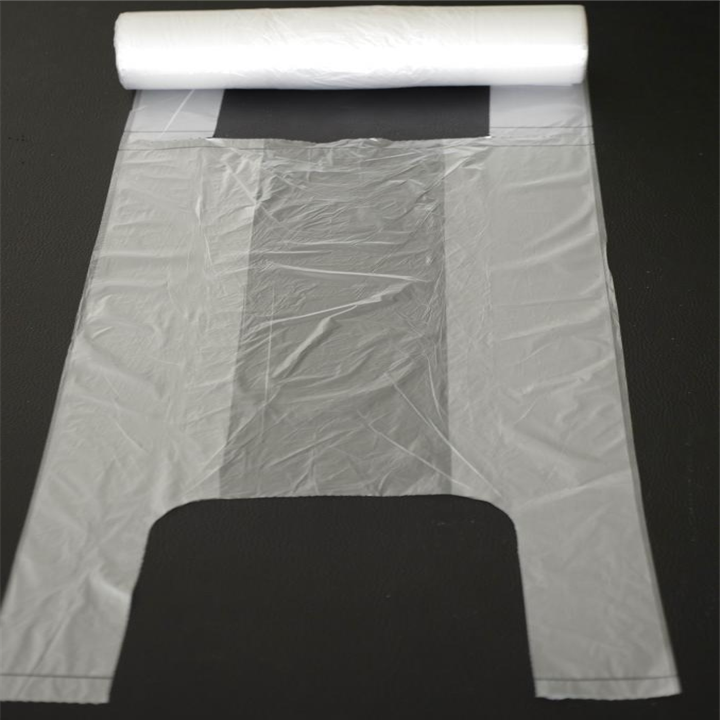

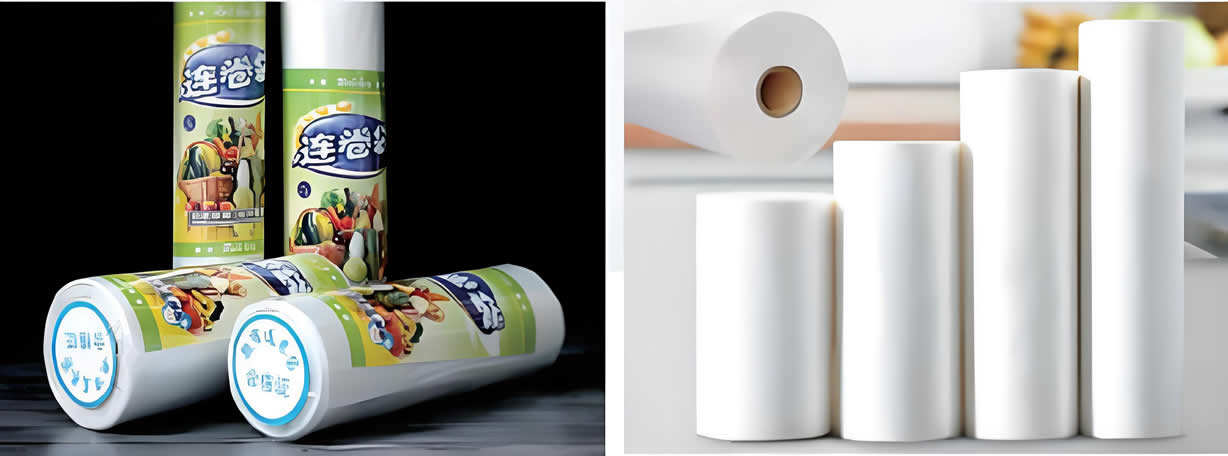

Final products	T-shirt bag on roll, Flat bag on roll with core or coreless
Total power	8kw	8kw	9kw
Weight	850kgs	950kgs	1100kgs
Dimension after installation	3300*1100*1800mm	3300*1200*1800mm	3300*1400*1800mm
Voltage of machine	220V,50Hz,single-ph

Applications:
