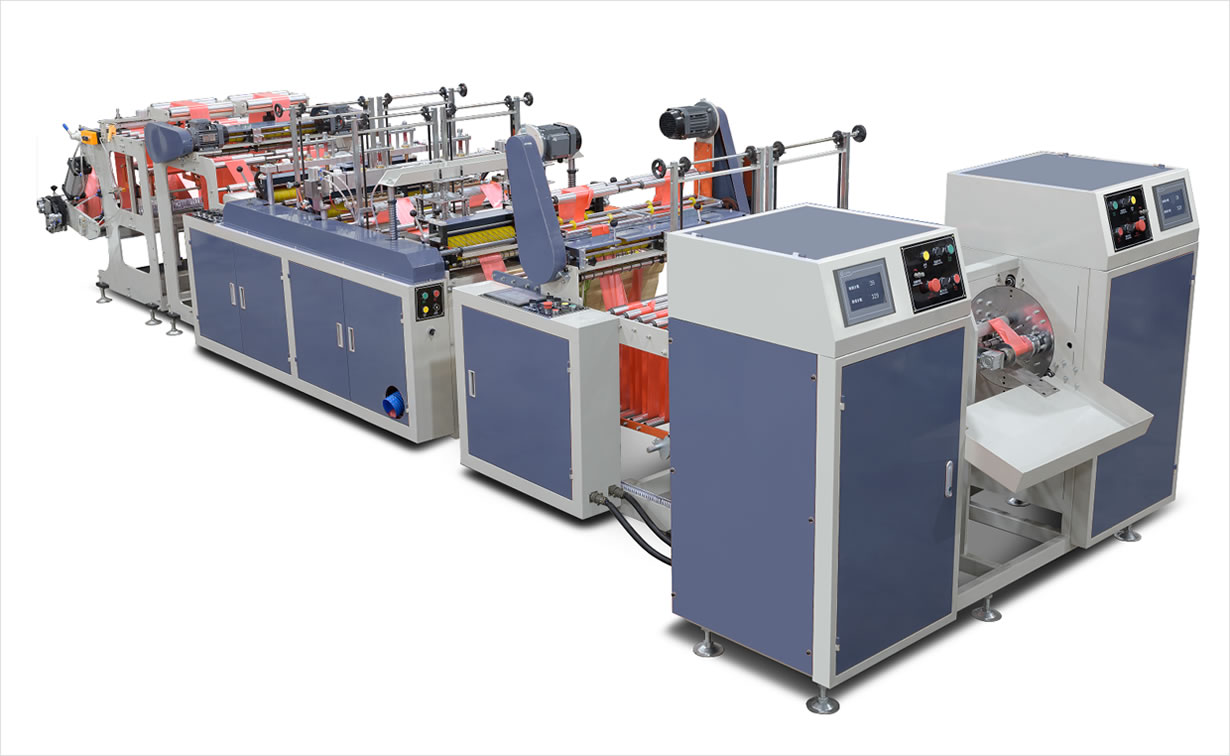

OJBA-300x2 fully automatic coreless dual channel high-speed eight fold vest flat mouth garbage bag making machine

DATA：2022/1/7 Publisher: Oujie Machinery

Performance and features：

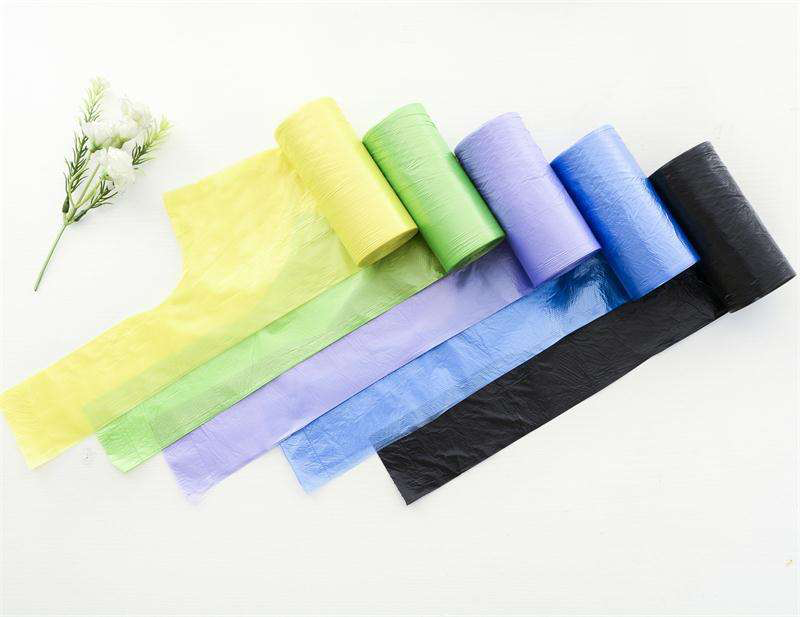

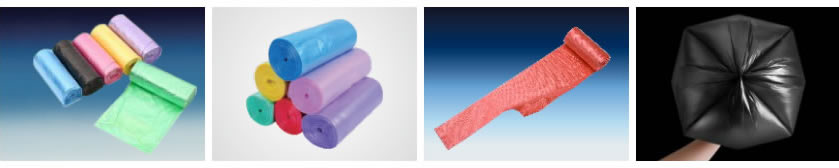

This equipment is mainly used for producing eight fold vest garbage bags and eight fold flat mouth garbage bags, with dual channel bag making, automatic roll changing, and accurate number of neatly wound rolls.
Main technical parameters：
  Machine model
   OJBA-300*2
  Bag-making width
   80-180mm
  Bag length   300-1000mm
  Machine speed
   60-180pcs/min*2
  Maximum linear velocity
   100m/min
  Bag thickness
   0.006-0.025mm
  Sealing method   Roll up 20% flat pocket or roll up 20% back pocket
  Temperature control range   8 Zone
  Heating total power   12kw
  Total power   22kw
  Machine weight   1600kg
  Machine dimensions   6200*2200*1750mm(L*W*H）
