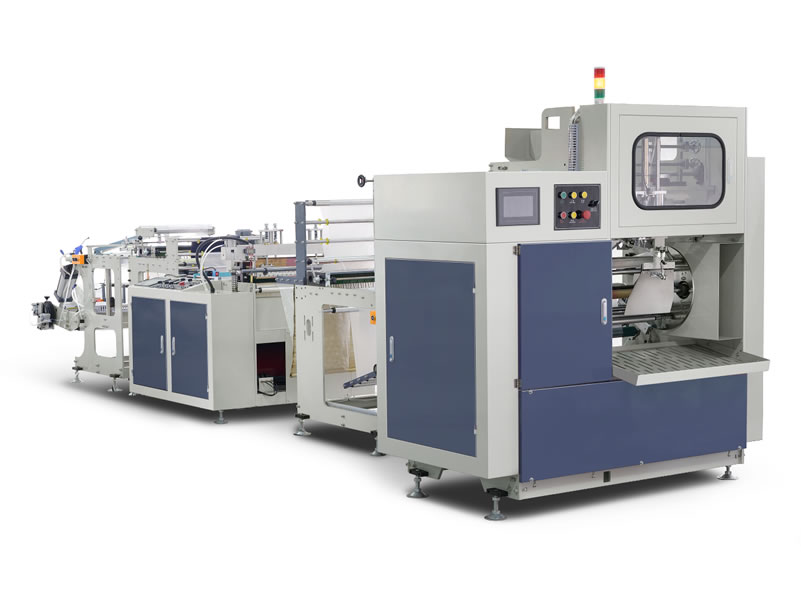

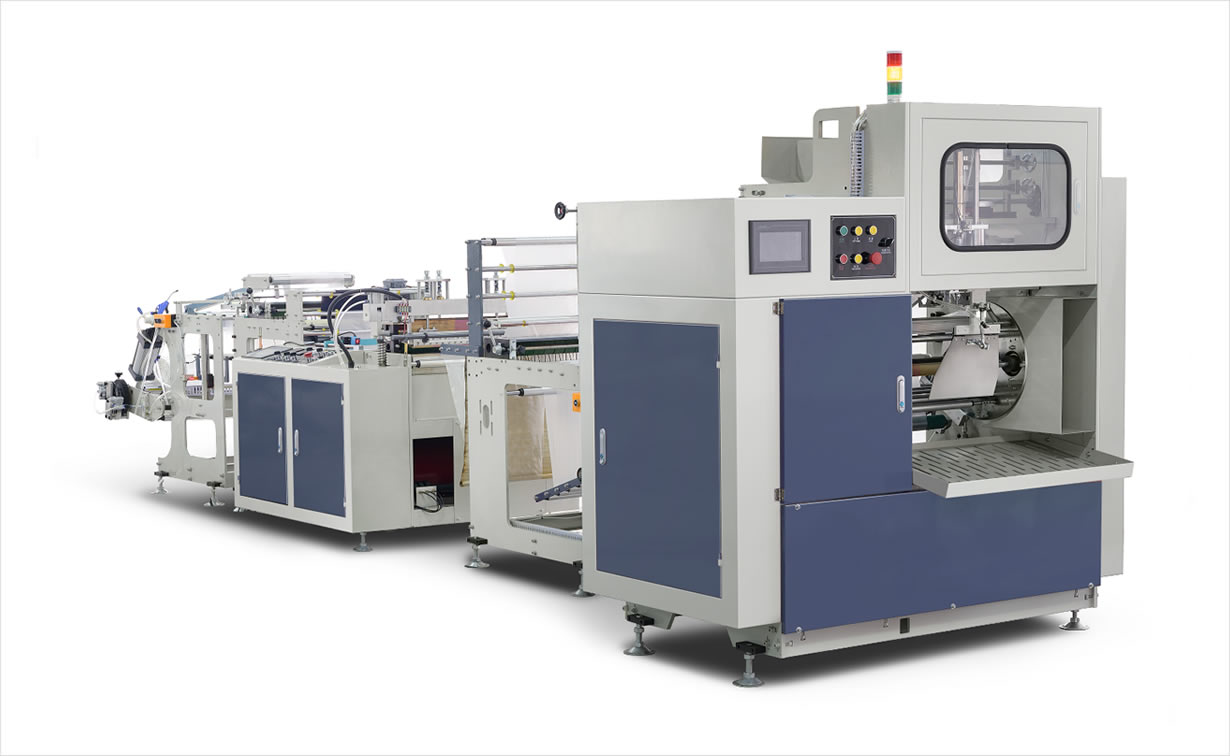

OJF-500 fully automatic core continuous roll supermarket flat mouth fresh-keeping bag making machine

DATA：2022/1/7 Publisher: Oujie Machinery

Performance and features:

1. Computer automatic control, automatic counting and adjustable counting alarm, high efficiency, saving manpower and time;

2. From film roll to finished bag, it is fully automated and completed in one go;
3. Domestic servo motor with fixed length, photoelectric tracking, accurate and stable, feeding adopts photoelectric control;

4. Adopting a hot cutting device and an intelligent temperature control system to ensure a firm and smooth sealing of the bag opening;
5. The host adopts a frequency converter to control speed regulation
6. Material feeding is controlled by a frequency converter.

Main technical parameters:

Machine model	OJF-500
Machine speed	50-300pcs/min
Maximum linear velocity	120m/min
Bag length	90-1000mm
Bag-making width	60-400mm
Bag thickness	0.005-0015mm
Sealing method	Core shopping bag
Temperature control range	Zone 2
Heating total power	6kw
Total power	15kw
Machine dimensions	6000x1300x1800mm(LWH)
