Description:

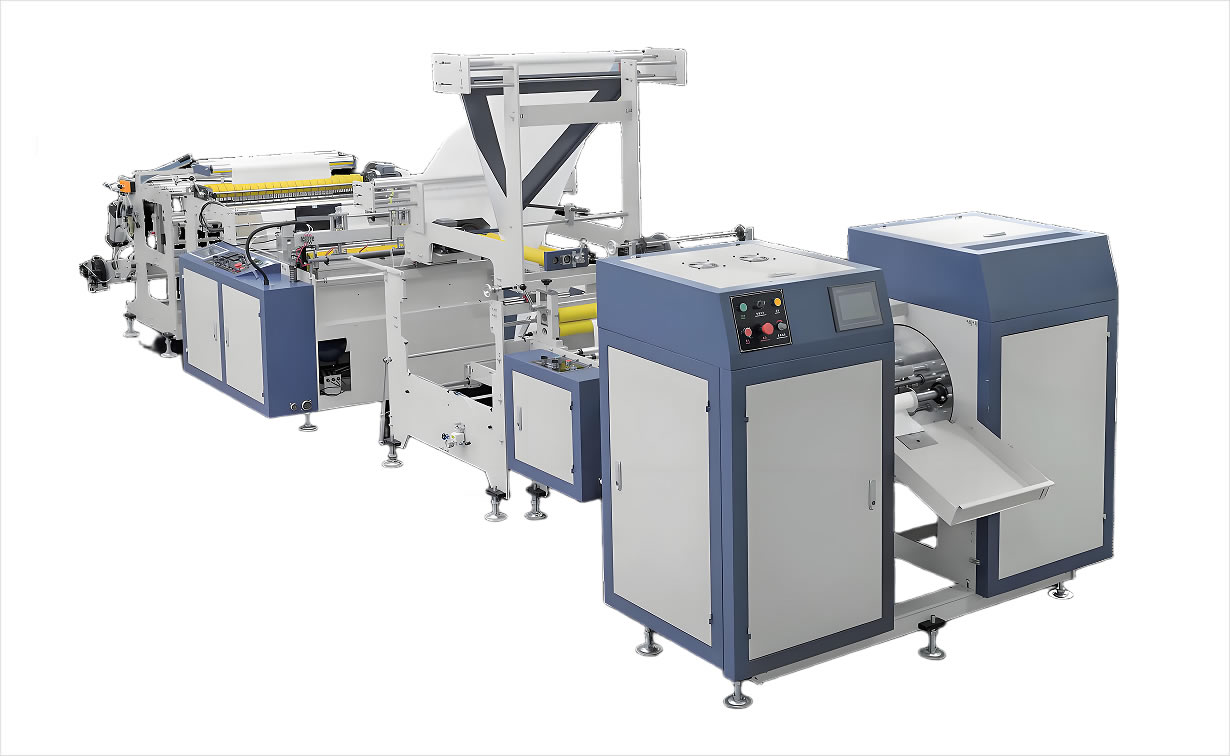

This machine is used for producing biodegradable draw tape bags. Adopting servo motor control. With photocell for both blank and printed bags.

Features:

Touch screen computer control of whole machine;

Servo motor control to make it easy to adjust the bag length and machine speed;

Equipped with EPC to ensure neat winding;

Automatic roll changing to save labor cost and time;

Double folders to make bags small and easy to pack:

Specifications:

Model	OJDS-800	OJDS-1000	OJDS-1200
Width of bag making	400-700mm	500-900mm	600-1100mm
Length of bag making	300-650mm	500-800mm	600-1100mm
speed of bag making	40-120bags/min	40-100bags/min	30-85bags/min
Thickness of bag making	HDPE:0.007-0.025mm, LDPE:0.015-0.05mm
Final products	Draw tape bag on roll, draw string bag on roll
Total power	15kw	15kw	18kw
Weight	3200kgs	3400kgs	3800kgs
Dimension after installation	7000*2000*2200mm	7000*2000*2200mm	7000*2000*26mm00
Voltage of machine	380V,50Hz,3-ph
