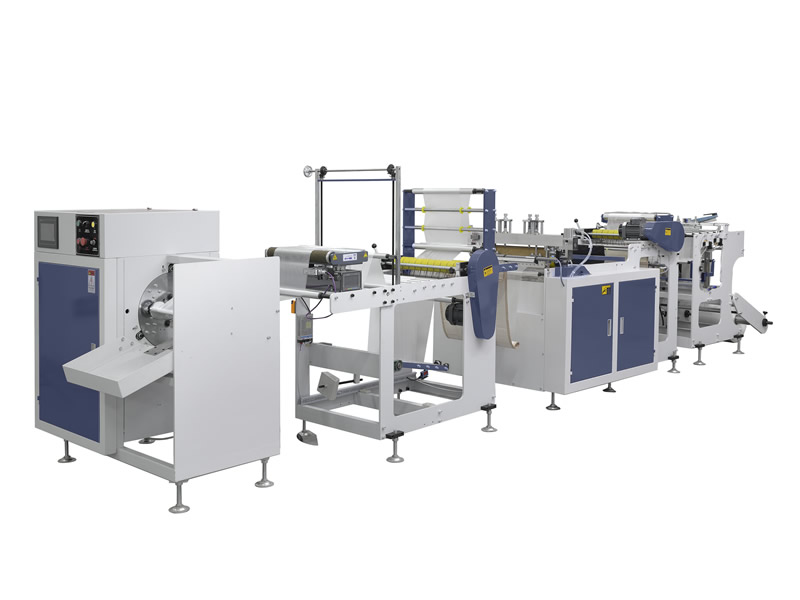

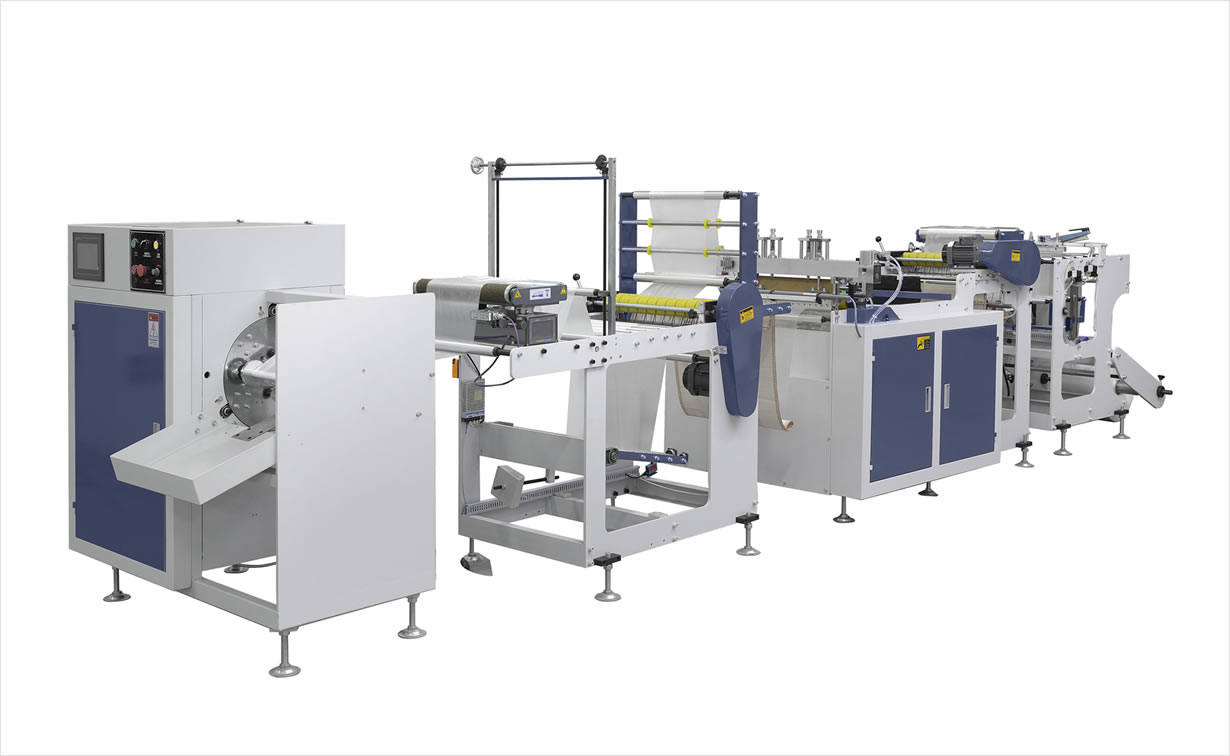

OJDA-500 Fully Automatic Coreless Continuous Roll Flat Pocket Bag Making Machine

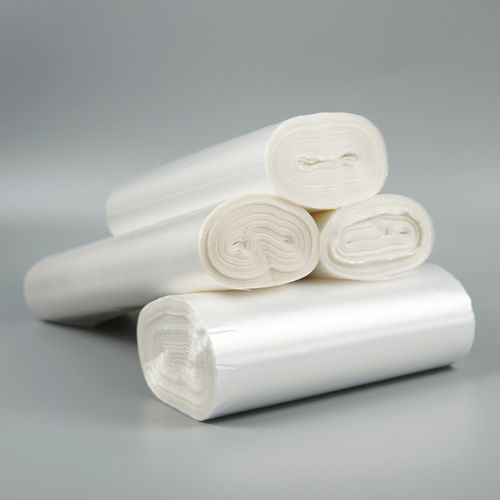

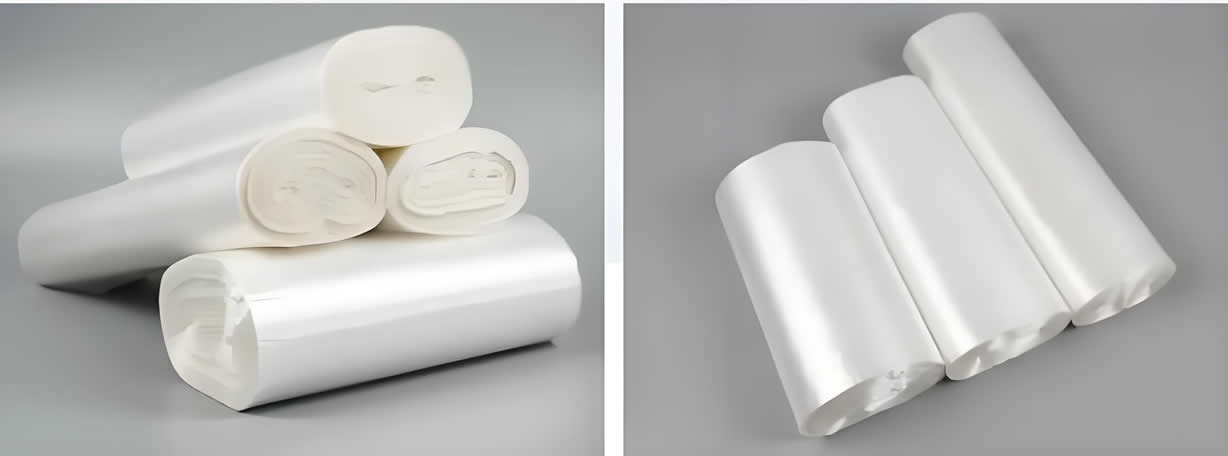

This equipment is a specialized device for producing eight fold flat mouth garbage suction bags. It has dual channel high-speed non stretch bag making, bottom sealing, independent automatic roll changing, neat winding, and accurate quantity. Proactively release materials and maintain stable tension.
Performance and features：
Main technical parameters：
Machine model
OJDA-500
Bag-making width
80-300mm
Bag length
100-1000mm
Machine speed
60-200pcs/min/*2
Bag thickness
0.006-0.025mm
Sealing method
Roll up 20% flat pocket or roll up flat pocket
Number of roll changes
5 pcs
Temperature control range
2 Zone
Total power
19.5kw
Machine weight
1400kg
Machine dimensions
6200x1200x1800mm(L*W*H)
