Description:

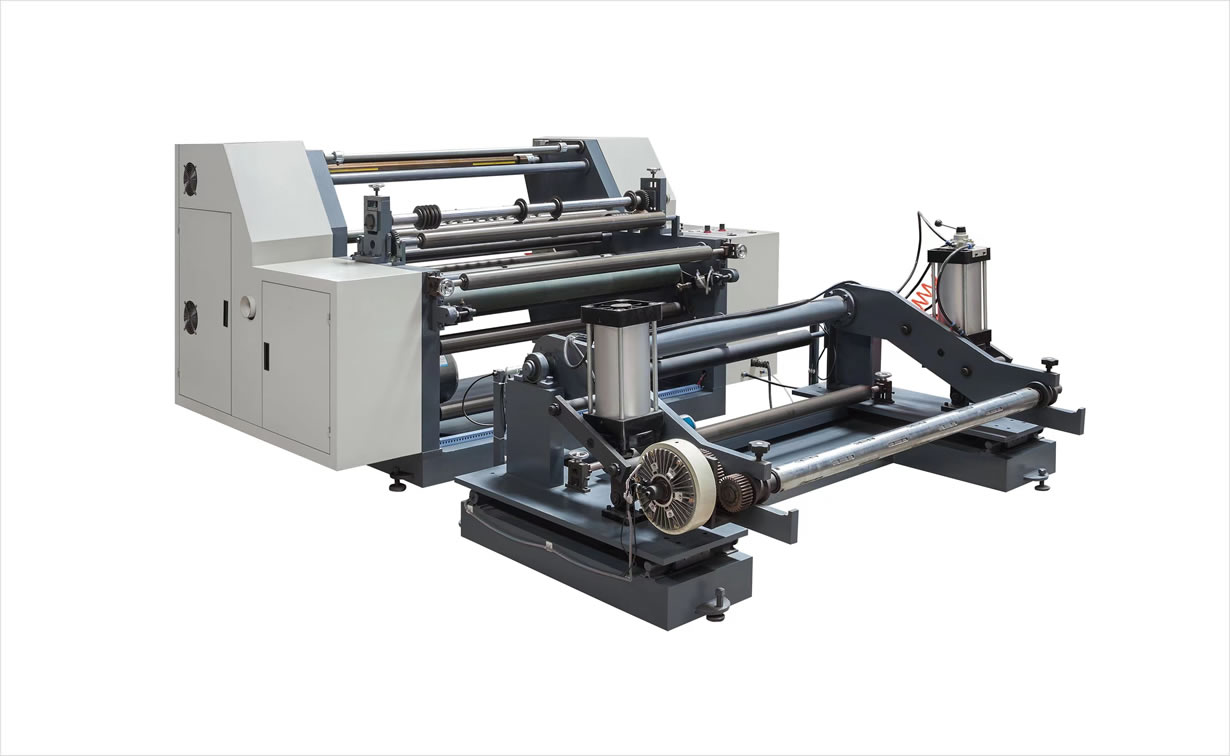

This machine is suitable for slitting and rewinding such various roll materials, PVC, PET, BOPP, PE film, paper and aluminum foil ect.  which can cut material according to different requirements during production.

Features of Machine:

1.The control system interface is in front and back of the machine, easy operating.

2.Adopting three-phase asynchronous motor , frequency control can be achieved.

3.The tension can be automatically adjusted (discharge using automatic tension control system).

4.Traction roller with horizontal push cylinder pressure roller, the film does not slip.

5.Correcting system with a synchronous motor, high precision ball screw, Gabriel photoelectric eyes. Use of linear bearing rails, mobile travel 130mm, automatically correcting the formation of more precise cut.

6. Adopts flat knife and round knife cutting .

7. Equipped with rim charge conveying device.

8. Winding automatic processing device.

9. Coiling axis horizontal axis rotary winding design, Single operation is ok.

10. With automatic countingr device, operations can be automatically calculated in meters.

11. Machine all the guide roll can be adjusted to eliminate vertical and horizontal deviation of raw materials.

Technical Specifications:

Model	OJW-1300	OJW-1600
Width of material	1300mm	1600mm
Dia.  of unwinding	ф1200mm	ф1200mm
Dia. of rewinding	ф600mm	ф600mm
Thickness of material	10-75um(flat knife slitting)   10-350um（round knife slitting）
width of final roll	20-1300mm	20-1600mm
Diameter of paper core	ф76m	ф76m
Speed of slitting	10-200m/min	10-200m/min
Accuracy of EPC	±0.5mm	±0.5mm
Weight of machine	2800kgs	3200kgs
Dimension of machine	3000*2750*1550mm	3000*3050*1550mm
Voltage of machine	380V,50Hz,3-Ph
