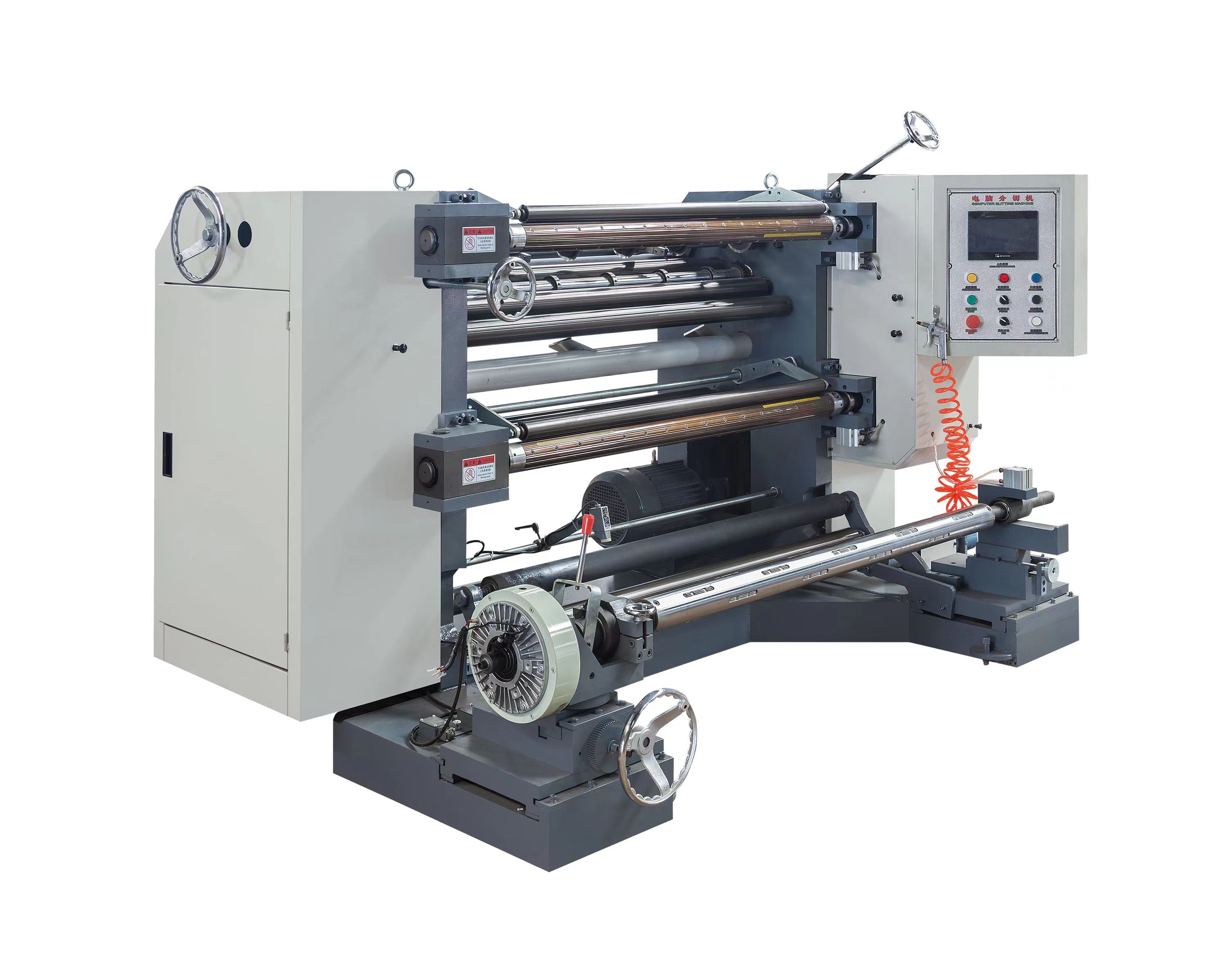

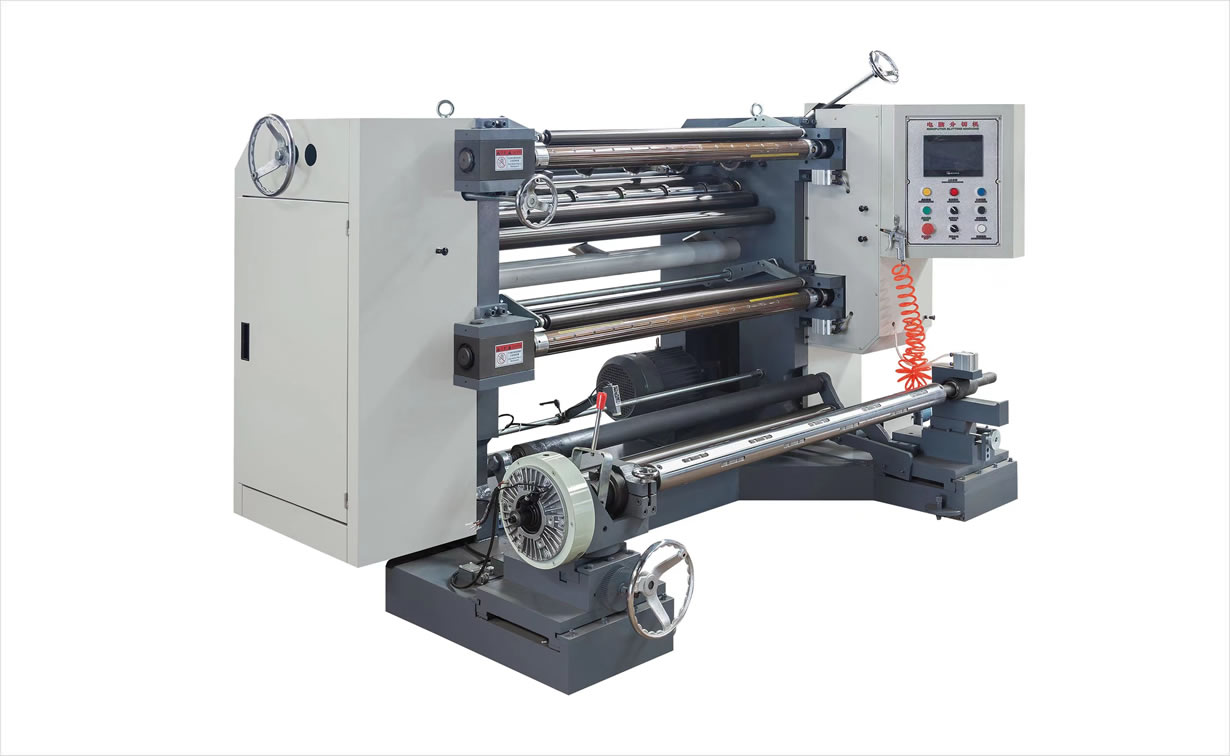

OJ Plastic film and Paper Vertical Slitting and Rewinding Machine

DATA：2022/4/8 Publisher: Oujie Machinery


Description:

This machine is suitable for slitting and rewinding such various roll materials, PVC, PET, BOPP, PE film, paper and aluminum foil ect.  which can cut material according to different requirements during production.


Features of machine:

1. This machine is a kind of vertical slitting and rewinding machine.
2. Microsoft computer for operation, more easier and convenient, the control part is connected to machine body, take less space.

3. Automatic EPC with photocell for unwinding, photocell is suitable for tracking the edge and printing mark of material.

4. Air shafts (3inch) for unwinding and rewinding, magnetic powder brake and clutches for tension control.
5. Main motor with frequency converter for speed regulation.
6. Equipped with rim charge conveying device.
7. Automatic meter counting device

8. Round knives optional for aluminum foil and paper slitting.


Technical Specification:

Model OJ-700 OJ-1100 OJ-1300
Width of material 700mm 1100mm 1300mm
Dia. of unwinding 600mm 600mm 600mm
Dia. of rewinding 420mm 420mm
 420mm
Width of final roll 20-700mm 20-1100mm 20-1300mm
Speed of slitting 10-150m/min 10-150m/min
 10-150m/min
Accuracy of EPC ±0.5mm
 ±0.5mm
 ±0.5mm
Weight of machine 1100kgs 1300kgs 1500kgs
Dimension of machine 1250*1900*1300mm 1250*2300*1300mm
 1250*2500*1300mm
Voltage of machine 380V,50Hz,3-Ph
