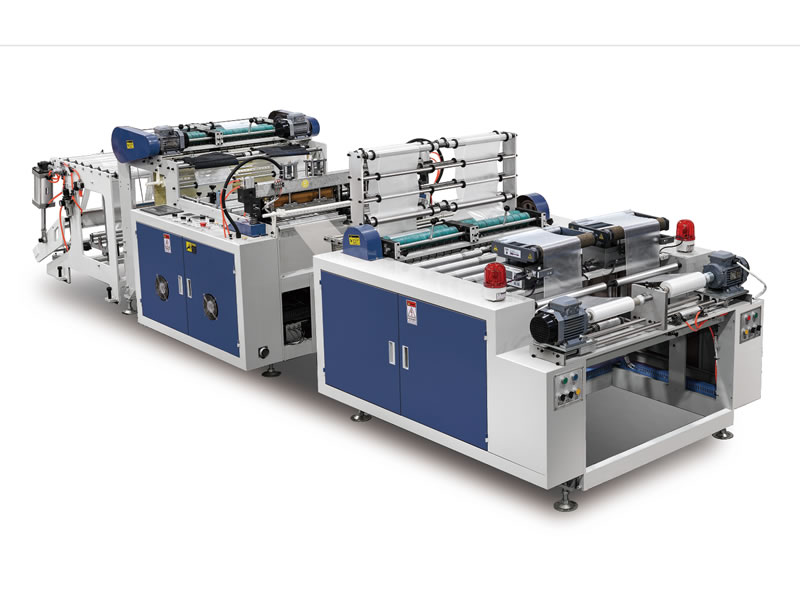

OJCB-500 * 2 type core supermarket continuous roll flat pocket fresh-keeping bag making machine

DATA:2022/1/7 Publisher: Oujie Machinery





Performance and features
1.Computer automatic control, automatic counting and adjustable counting alarm, high efficiency, saving manpower and time

2.From film roll to finished bag, it is fully automated and completed in one go;

3.Domestic servo motor with fixed length, photoelectric tracking, accurate and stable, feeding adopts photoelectric control;

4.Adopting a hot cutting device and an intelligent temperature control system to ensure a firm and smooth sealing of the bag opening,
5.The host adopts a frequency converter to control speed regulation
6.Material feeding is controlled by a frequency converter.

Main technical parameters:

  Machine model
  OJCB-500x2
  Machine speed
  50-300 pieces per minute per lane
  Maximum linear velocity
  120m/min
  Bag length
  100-1000mm
  Bag-making width
  60-400mm
  Bag thickness
  0.005-0015mm
  Sealing method
  flat bag
  Temperature control range
  3 Zone
  Heating total power
  8kw
  Total power
  15kw
  Machine dimensions
  6000x1800x1800mm(L*W*H)
