Description:

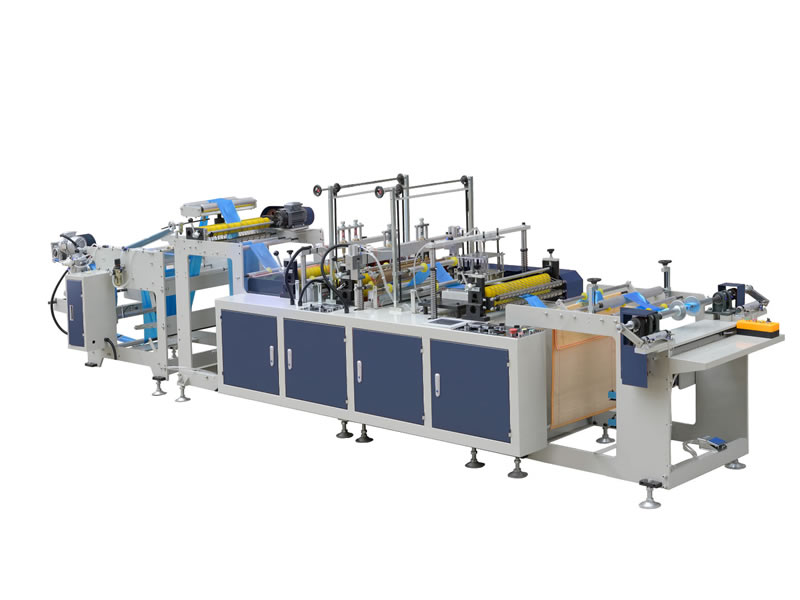

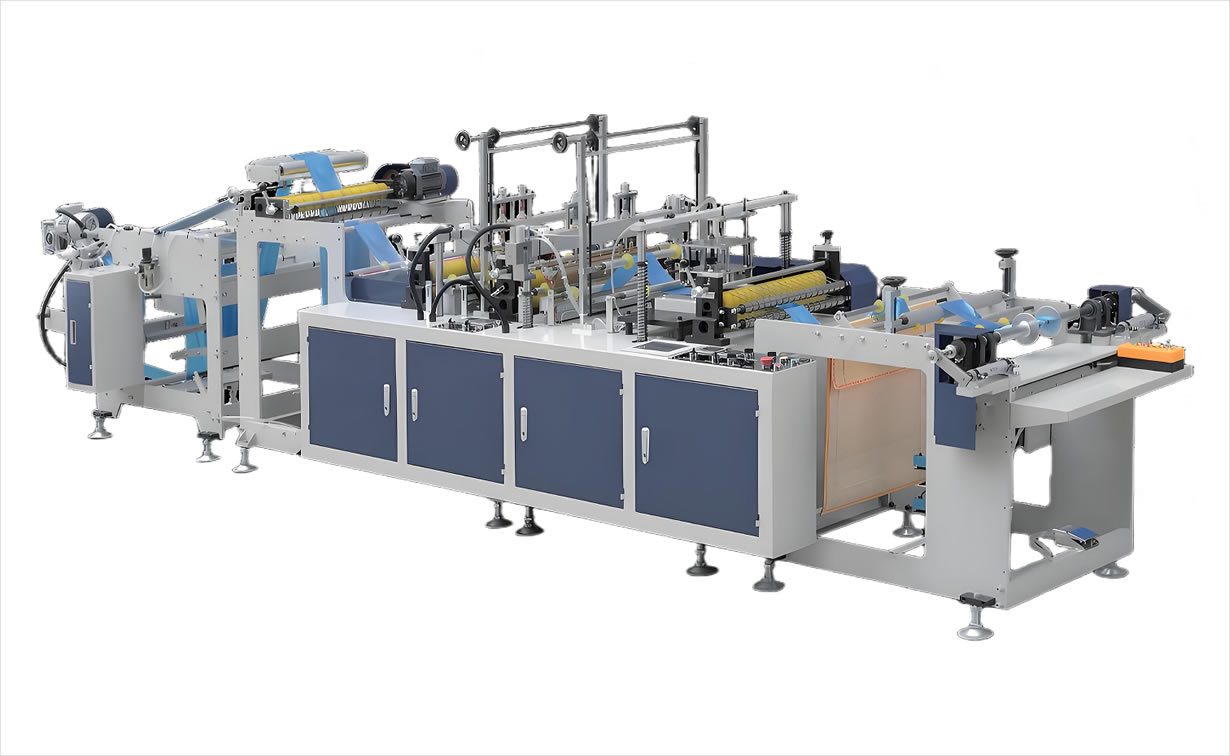

This semi-automatic machine is used to produce rolling flat bag and star sealing flat bag. It produces both bags with core and without core. Hot sealing knife and perforation knife of machine are designed together in order to avoid sealing line stretching problems, as well as improve the speed of machine.

Features:

Touch screen computer control of whole machine;

Servo motor control to make it easy to adjust the bag length and machine speed;

Equipped with EPC to ensure neat winding;

Specifications:

Model	OJSA 500
Width of bag making	100-400mm
Length of bag making	100-1200mm
Speed of bag making	80-250 bags/min
Thickness of bag making	0.006-0.02mm
Usage of machine	produce flat bag with core and star sealing bag without core
Total power	8kw
Weight	1000kgs
Dimension of installation	6000*1200*1800mm
Voltage of machine	380V, 50Hz,3-ph

Applications:
