Descriptions:

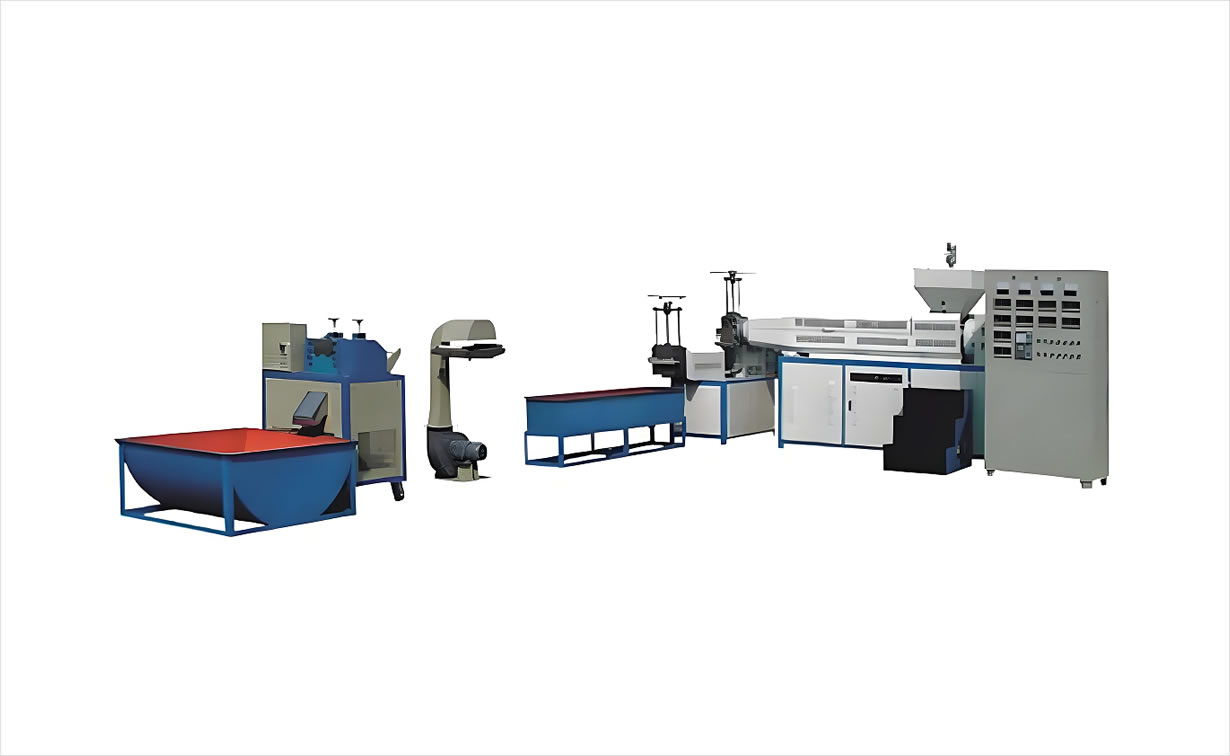

This plastic recycling machine is used to recycle waste plastics, like HDPE, LDPE, and PP, etc.; It equipped with hydraulic quick filter-screen-replacing unit and automatic temperature control. The granulating crusher uses adjustable speed motor, pelleting with an extruding machine at the same discharging speed synchronistically. The unit is easy to operate, with high output, steady performance, and favorable economic benefit.

Specifications:

OJ 120/20 first stage Extruder

1. Screw diameter:φ120

2. L/D: 20:1

3. Motor power: 37KW，frequency conversion

4. Screw and barrel are made of 38CrMoAlA and nitriding processed

5. Gear box adopts #200 special hard tooth face gear box

6. Hydraulic automatic non-stop screen changer



SJ110/10 second stage Extruder

1. Screw diameter:φ110

2. L/D: 10:1

3. Motor power: 15KW，frequency conversion

4. Screw and barrel are made of 38CrMoAlA and nitriding processed

5. Gear box adopts #173 special hard tooth face gear box

6. Hydraulic automatic screen changer

7.Capacity:100-150kg/h
